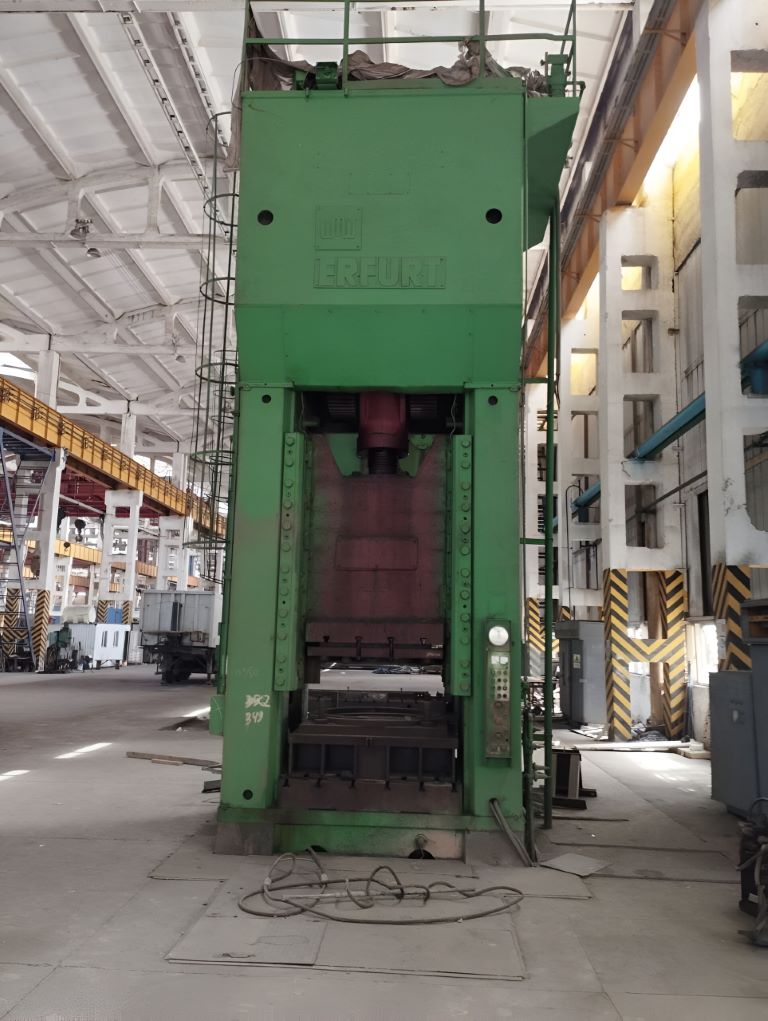

Prensa de desbarbado Erfurt PKZe 1250 - 1250 ton
Especificaciones técnicas (EN) -
Prensa de desbarbado Erfurt PKZe 1250 - 1250 ton (ID: 76348)
| Type | Trimming press |
| Manufacturer | Erfurt |
| Model | PKZe 1250 |
| Max. ram force | 1250 ton |
| Slide stroke | 500 mm |
| Slide adjustment | 215 mm |
| Shut height | 860 mm |
| Bed area | 1600 x 1850 mm |
| Slide area | 1300 x 1400 mm |
| Opening in the bed | 1100 x 1100 mm |
| Main motor rating | 90 kW |
| SPM | 8 |
| Cushion force in the bolster | 2000 kN |
| Cushion stroke | 200 mm |
| Height above floor | 7900 mm |
| Press weight | 130 ton |
