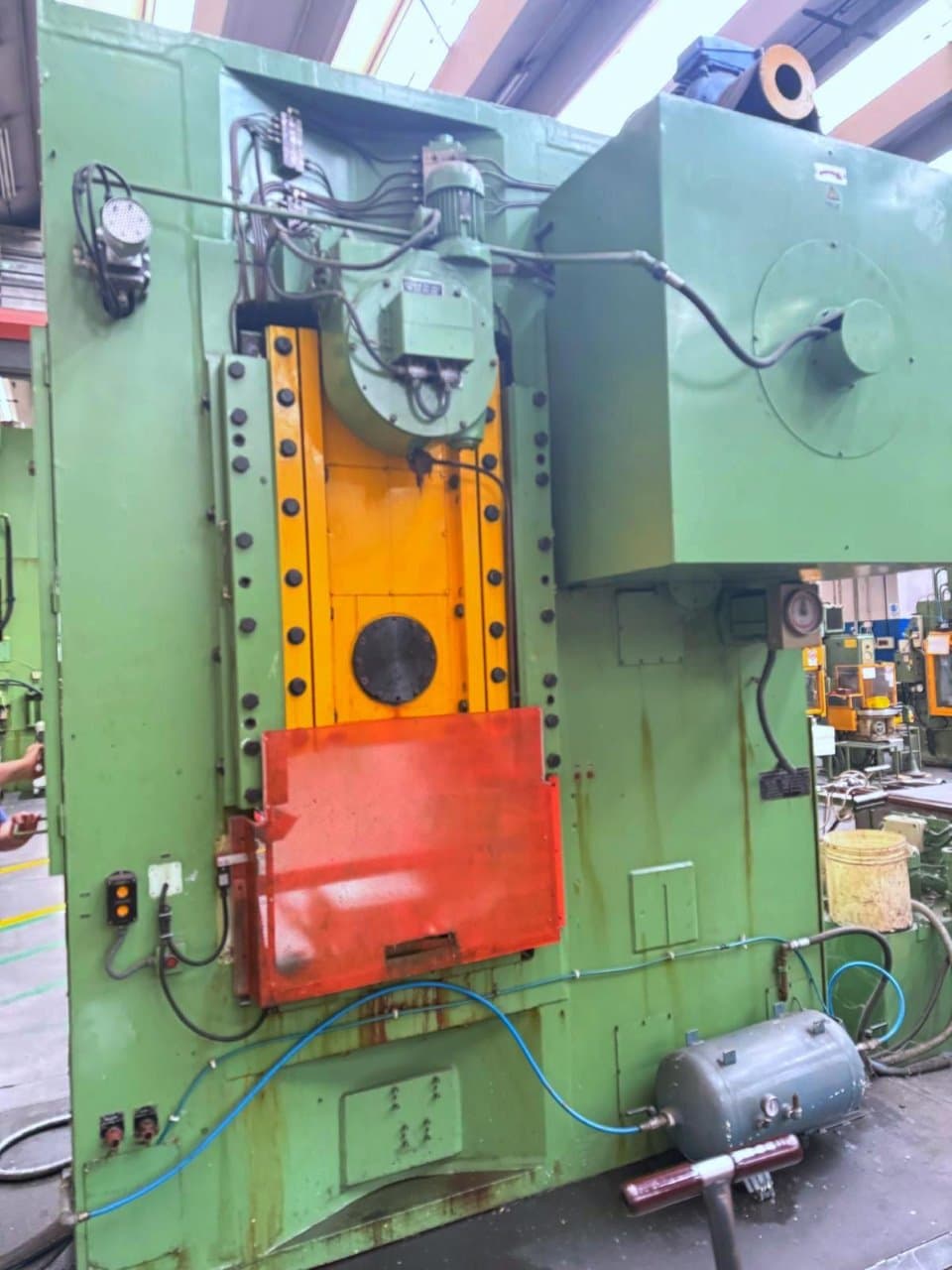

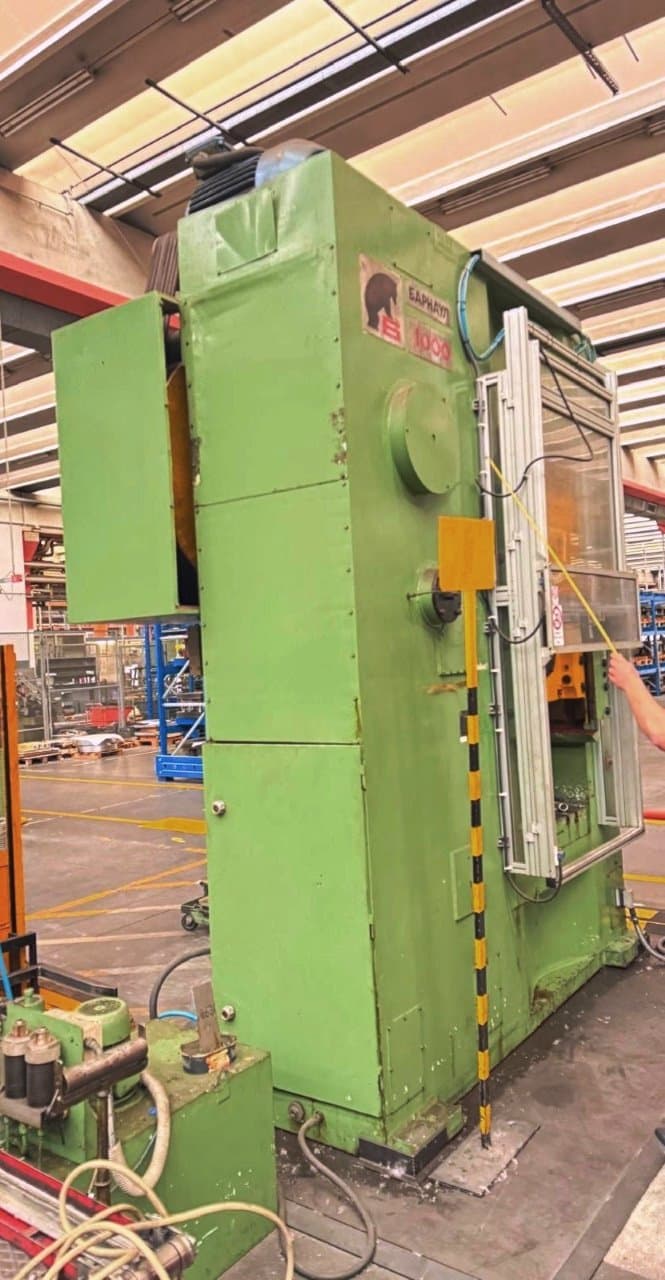

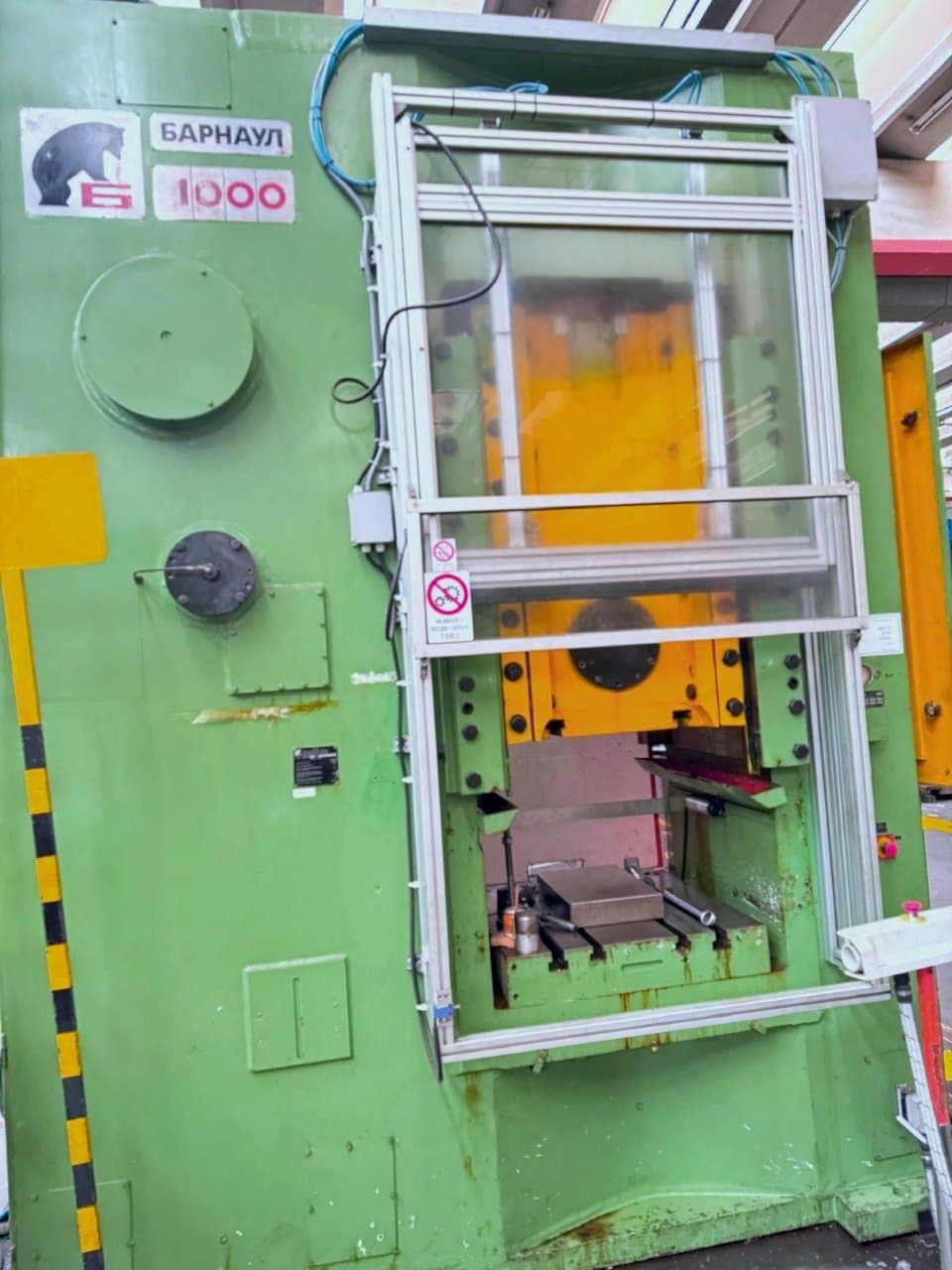

Prensa de rodilla Barnaul KB8340 B - 1000 ton
Especificaciones técnicas (EN) -
Prensa de rodilla Barnaul KB8340 B - 1000 ton (ID: 76463)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8340 B |
| Nominal effort | 1000 tons |
| Slide stroke | 170 mm |
| Strokes per 1 min | 32 |
| Shut height | 470 mm |
| Bolster plate-to-ram adjustable stroke | 16 |
| Table size | 800 x 800 mm |
| Bolster plate thickness | 140 mm |
| Lower knockout | |
| Stroke | 110 mm |
| Force | 320 kN |
| Upper knockout | |
| Stroke | 10 mm |
| Force | 100 kN |
| Main motor power | 33 kW, 380 V |
| Overall dimensions | 2950 x 1950 x 4090 mm |
| Weight | 26 tons |
