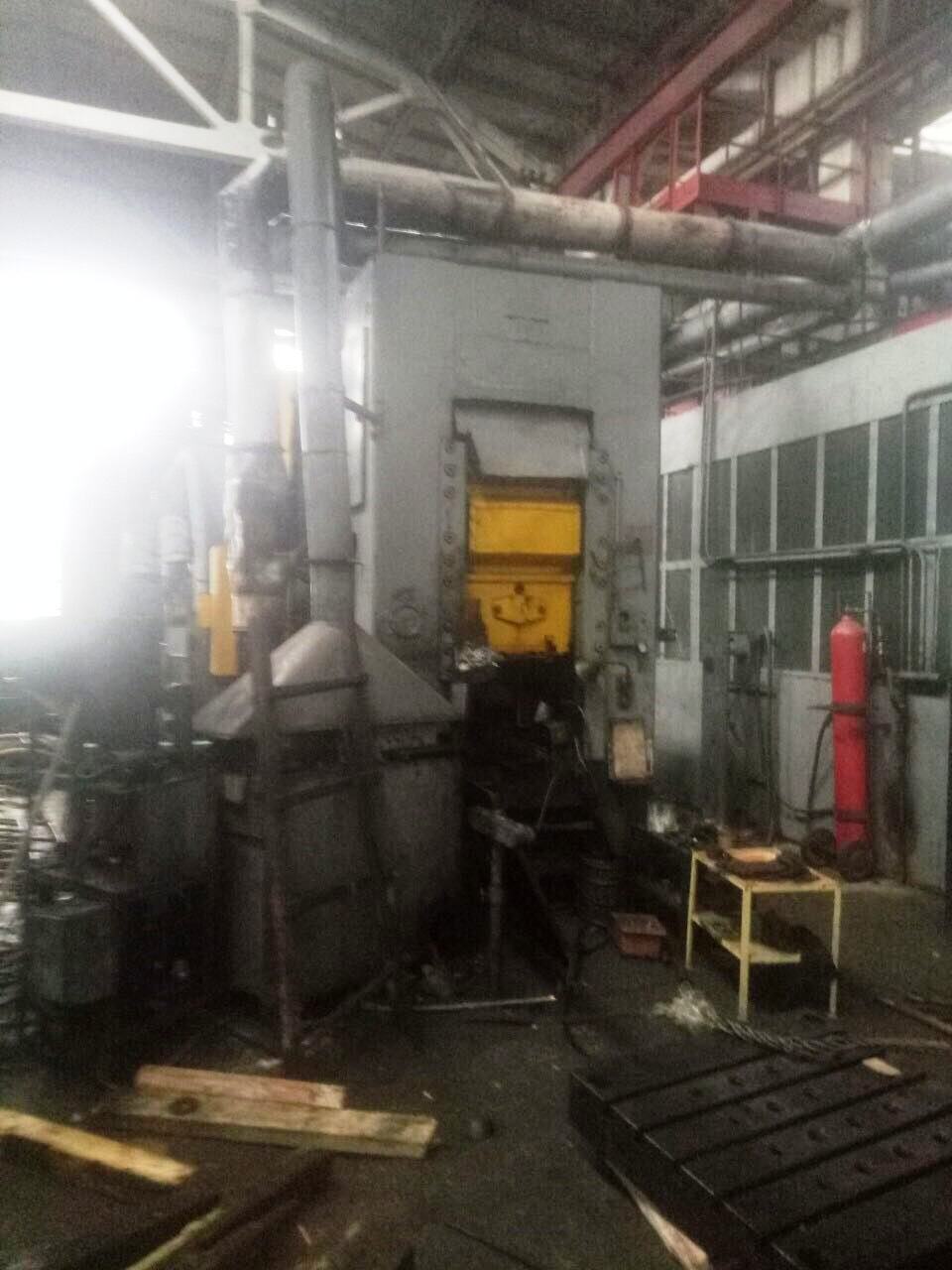

Prensa de extrusión en frío Barnaul K0034 - 250 ton
Especificaciones técnicas (EN) -
Prensa de extrusión en frío Barnaul K0034 - 250 ton (ID: 75143)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | K0034 |
| Maximum force | 250 tons |
| Slide stroke | 200 mm |
| Frequency of the continuous strokes of the slide | 32/1 min |
| Max. single-stroke engagements | 20/1 min |
| Adjustment of the tool’s height | 15 mm |
| Maximum tools shut-height | 490 mm |
| Dimensions of the bolster plate | |
| Left-to-right | 800 mm |
| Front-to-back | 800 mm |
| Overall dimensions | 2950x1950x4090 mm |
| Total weight | 21500 kg |
