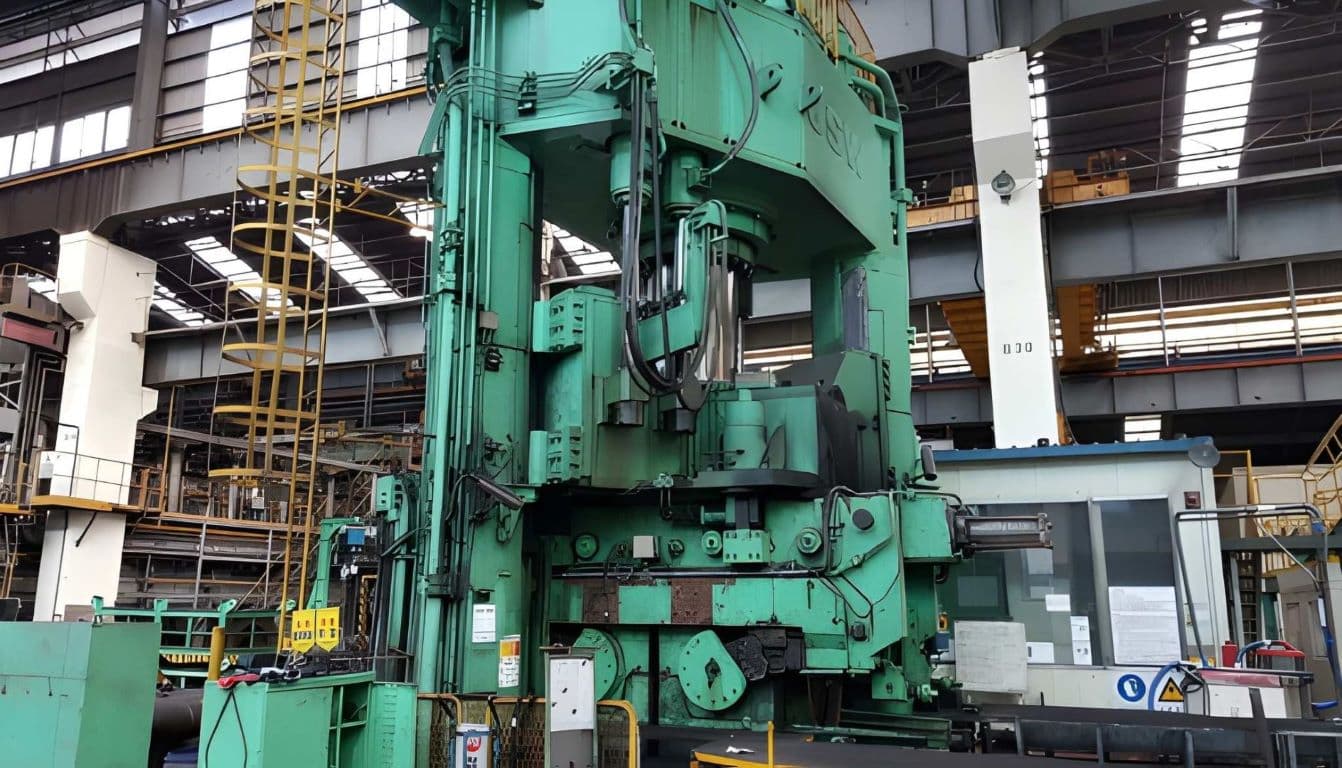

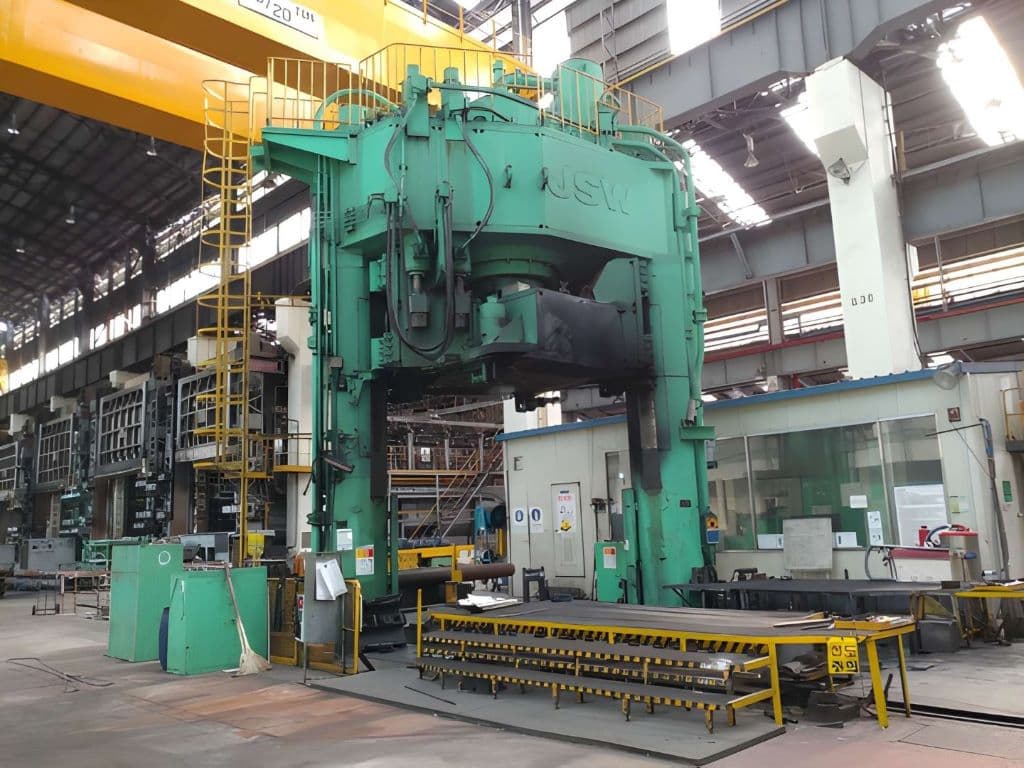

Prensa de forja libre JSW 2500 MT - 2500 ton
Especificaciones técnicas (EN) -
Prensa de forja libre JSW 2500 MT - 2500 ton (ID: S91425)
| Type | Open die forging press |
| Manufacturer | JSW |
| Model | 2500 MT |
| Year of manufacture | 1992 |
| Capacity | 2500 ton |
| Frame design | 2 Column |
| Main forging cylinder | 2500 ton |
| Lifting cylinders | 150 ton × 4 sets |
| Daylight | 4000 mm |
| Ram stroke | 1800 mm |
| Distance between columns | 2800 mm |
| Approach speed | 250 mm/s (fixed option |
| Forging speed | 30 mm/s (at 2300 ton) |
| Lifting speed | 90 / 180 / 240 mm/s (selectable stages) |
| Working oil pressure | 320 kg/cm² |
| Max forging eccentricity | 200 mm / 500 ton |
| Max height above floor | 9700 mm |
| Total electric power | 652 kW |
| Peak power | 915 kW |

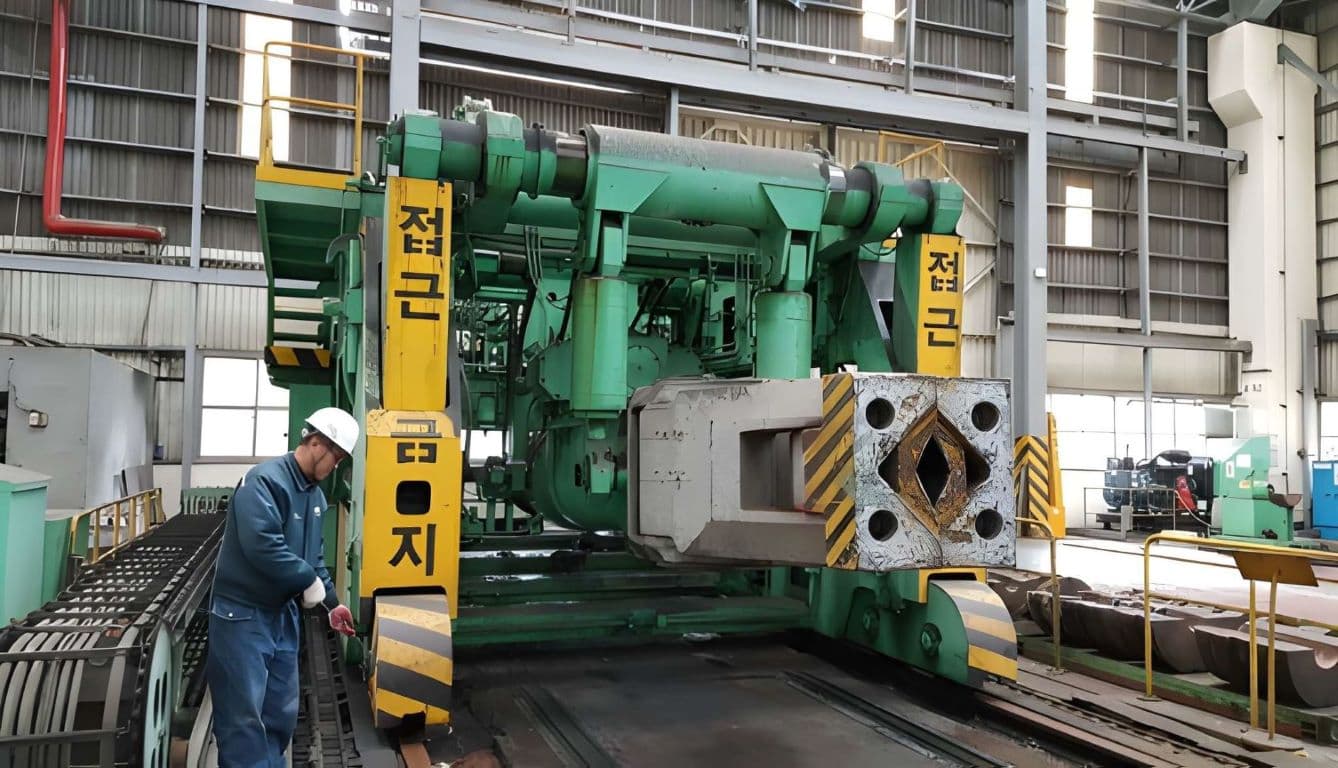

| Included equipment | 20 ton forging manipulator |
