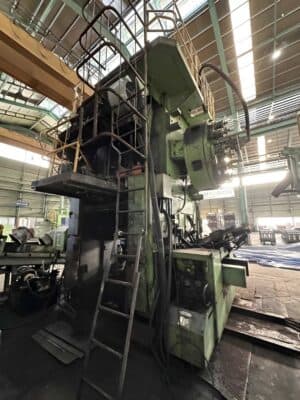

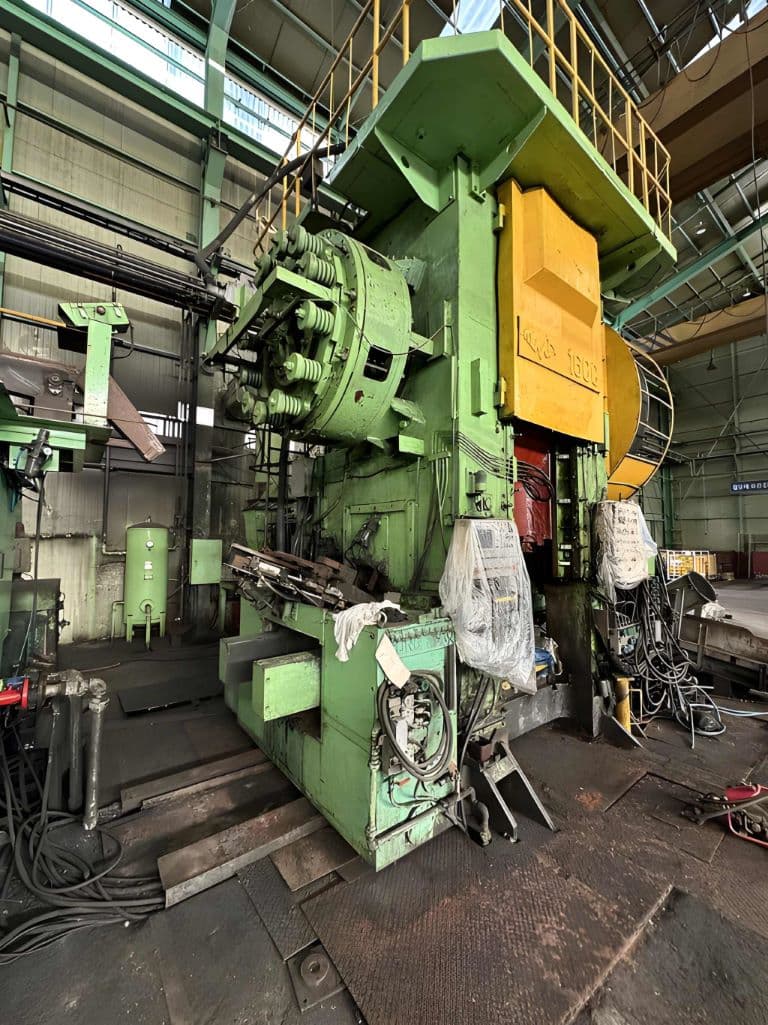

Prensa de estampación en caliente TMP Voronezh KG8042 - 1600 ton
Especificaciones técnicas (EN) -
Prensa de estampación en caliente TMP Voronezh KG8042 - 1600 ton (ID: 76457)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KG8042 |
| Year of manufacture | 1997 |
| Capacity | 1600 ton |
| Electrical panel | PLC |
| Stroke | 300 mm |
| SPM | 26-85 |
| Die height | 850 mm |
| Die space adjustment in the ram | 10 mm |
| Table | 1260 x 1200 mm |
| Ram | 1120 x 1400 mm |
| Uprights opening dimensions (W / H) | 800 / 910 mm |
| Mechanic upper knockout | |
| Power | 5 ton |
| Stroke | 50 mm |
| Pneumatic lower knockout | |
| Power | 10 ton |
| Stroke | 40 mm |
| Knock out | hydraulic |
| Main motor | 150HP x 440V |
| Bolster | 1260 x 1200 mm |
| Die height | 850 mm |
| Overall dimensions | 5340 x 4090 x 5640 mm |
| Press weight | 120 ton |
