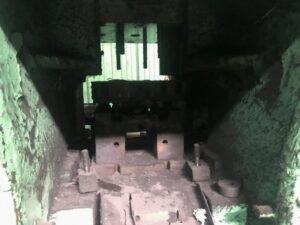

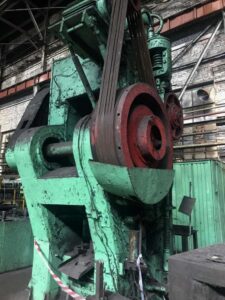

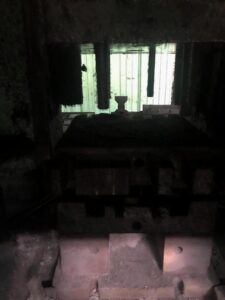

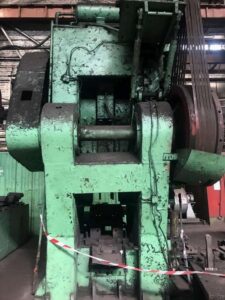

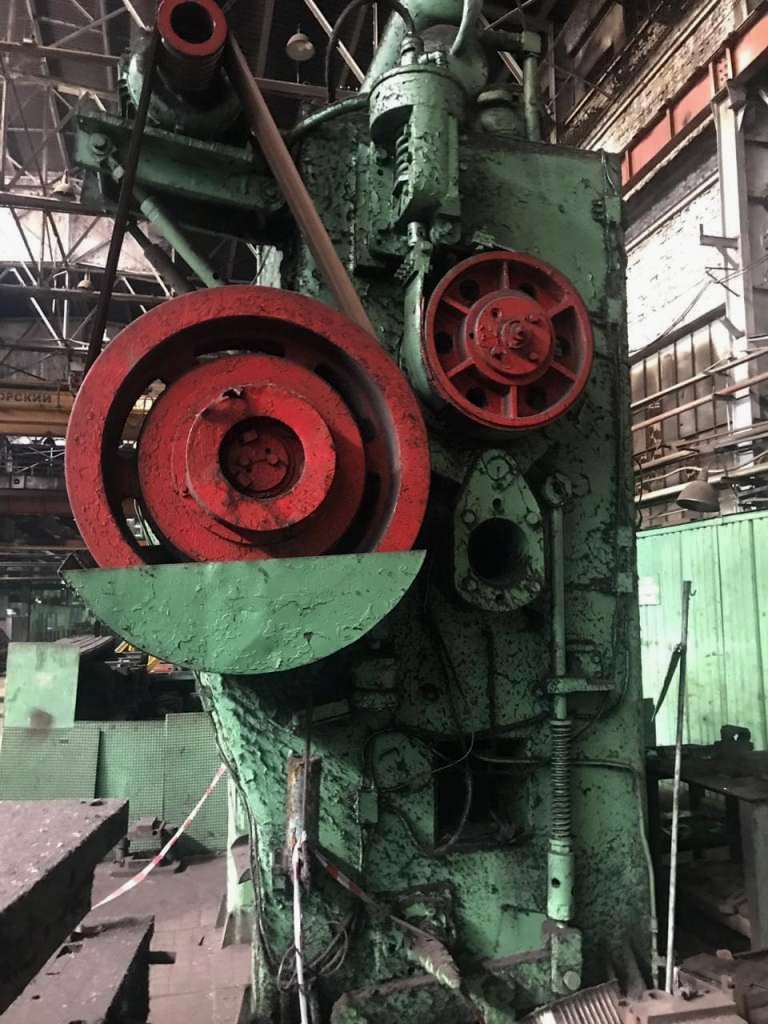

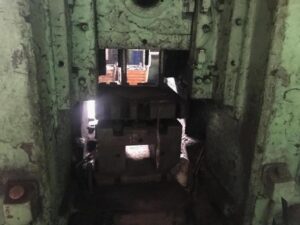

Prensa de estampación en caliente TMP Voronezh K863 - 1000 ton
Especificaciones técnicas (EN) -
Prensa de estampación en caliente TMP Voronezh K863 - 1000 ton (ID: 75373)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K863 |
| Capacity | 1000 tons |
| Slide stroke | 250 mm |
| Slide stroke number in 1 min | 80 |
| The closed height (the least distance between a table and a slider in its bottom position) |
560 mm |
| Table height adjustment | 15 mm |
| Distance clear between uprights | 860 mm |
| Table dimensions | |
| Front-to-back | 990 mm |
| Left-to-right | 500 mm |
| Slide dimensions | |
| Front-to-back | 720 mm |
| Left-to-right | 720 mm |
| Electrical motor power | 55 kW |
| Dimensions | 2800x3255x4975 mm |
| Press weight | 55 tons |
