Especificaciones (EN) - TMP Voronezh K04.038.842 (ID:75689)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K04.038.842 |
| Made in | Russia |
| Capacity | 1600 tons |
| Slide stroke | 300 mm |
| Number of continuous slide strokes per minute | 85 |
| Number of single slide strokes per minute | 16 |
| Distance between table and bolster slide plate in its lowest position | 660 mm |
| Size of distance adjustment between table and slide | 10 mm |
| Upper ejector | |
| Stroke | 40 mm |
| Force | at least 63 kN |
| Lower ejector | |
| Stroke | 32 mm |
| Force | at least 100 kN |
| Table dimensions | |
| Left-to-right | 1050 mm |
| Front-to-back | 1200 mm |
| Slide dimensions | |
| Left-to-right | 860 mm |
| Front-to-back | 910 mm |
| Size of windows in press columns | |
| Height | at least 710 mm |
| Width | at least 630 mm |
| Number of motors on the press | 3 |
| Main drive electric motor | |
| Power | 90 kW |
| Rotation frequency | 720 rpm |
| Electric motor of adjustment mechanism of closed height | |
| Power | 5,5 kW |
| Rotation frequency | 735 rpm |
| Press dimensions | |
| Left-to-right | 4850 mm |
| Front-to-back | 3515 mm |
| Height of the press above floor | 5570 mm |
| Press weight | 119600 kg |
Oferta comercial (en venta) - Prensa de forja TMP Voronezh K04.038.842 - 1600 ton (ID:75689). Todos los detalles de esta oferta (costo, condiciones de pago y entrega) se pueden obtener de nuestro gerente haciendo clic en el botón "Enviar solicitud" . También podemos ayudarlo a encontrar otros equipos..Enviar solicitud

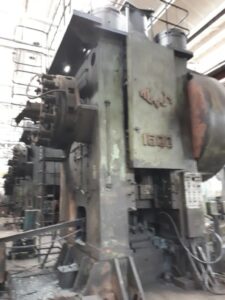

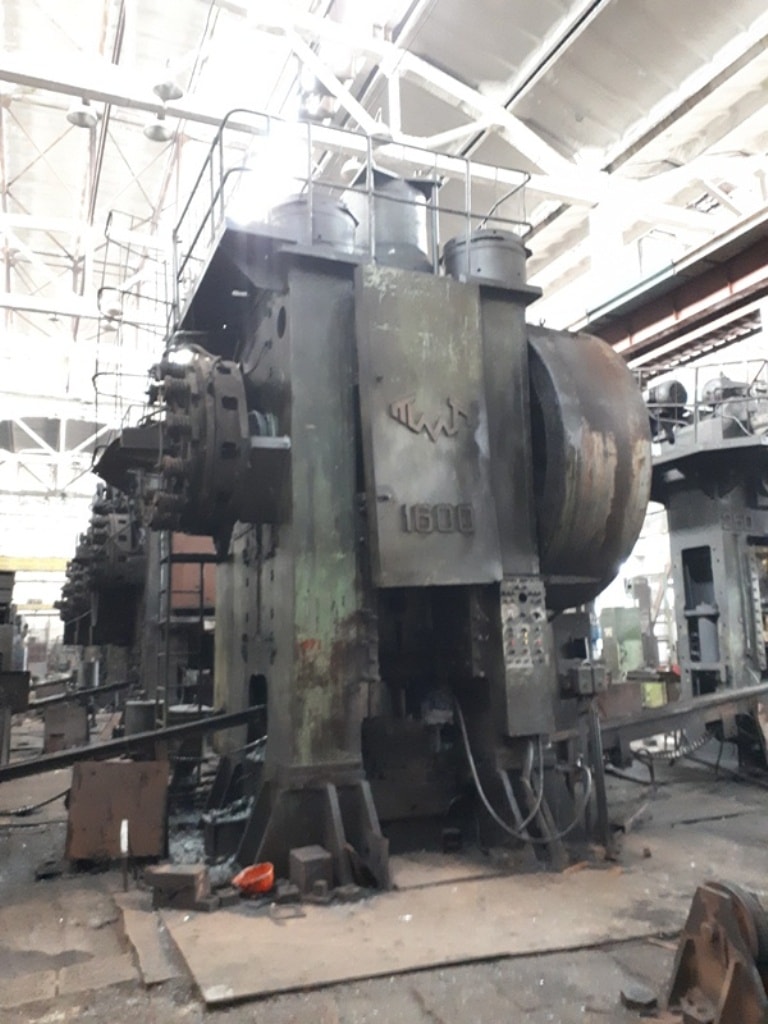

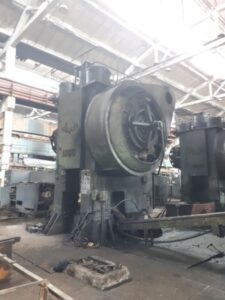

Fotos & Video - TMP Voronezh K04.038.842 (ID:75689)
