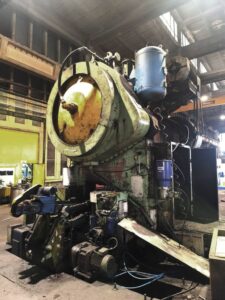

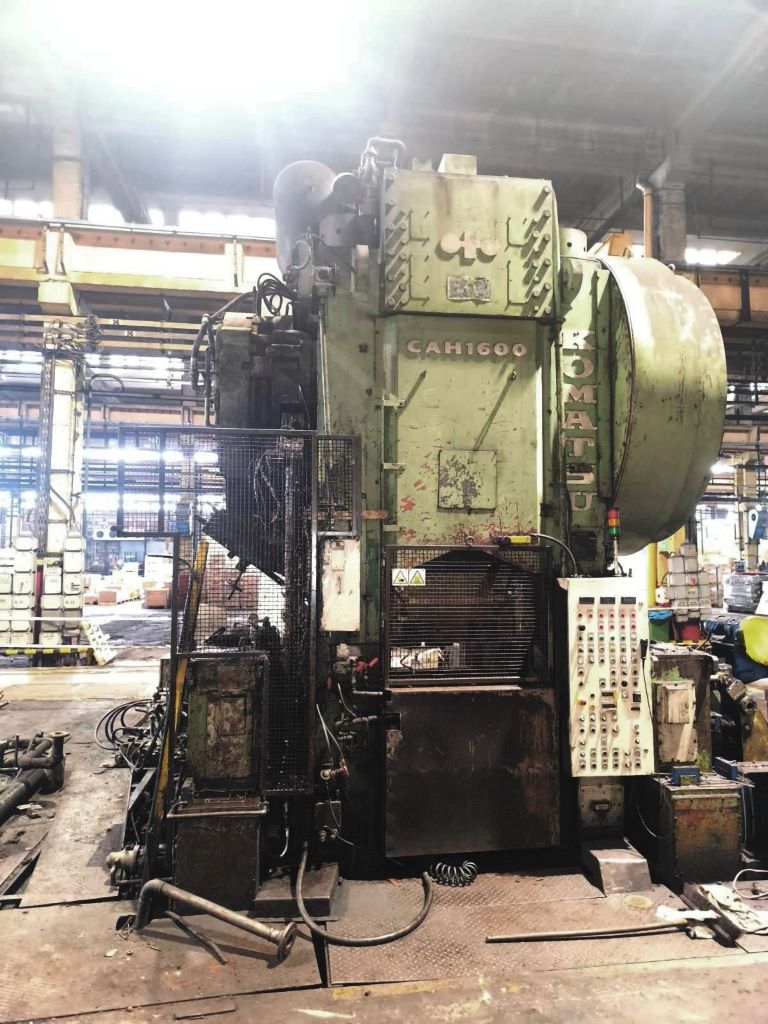

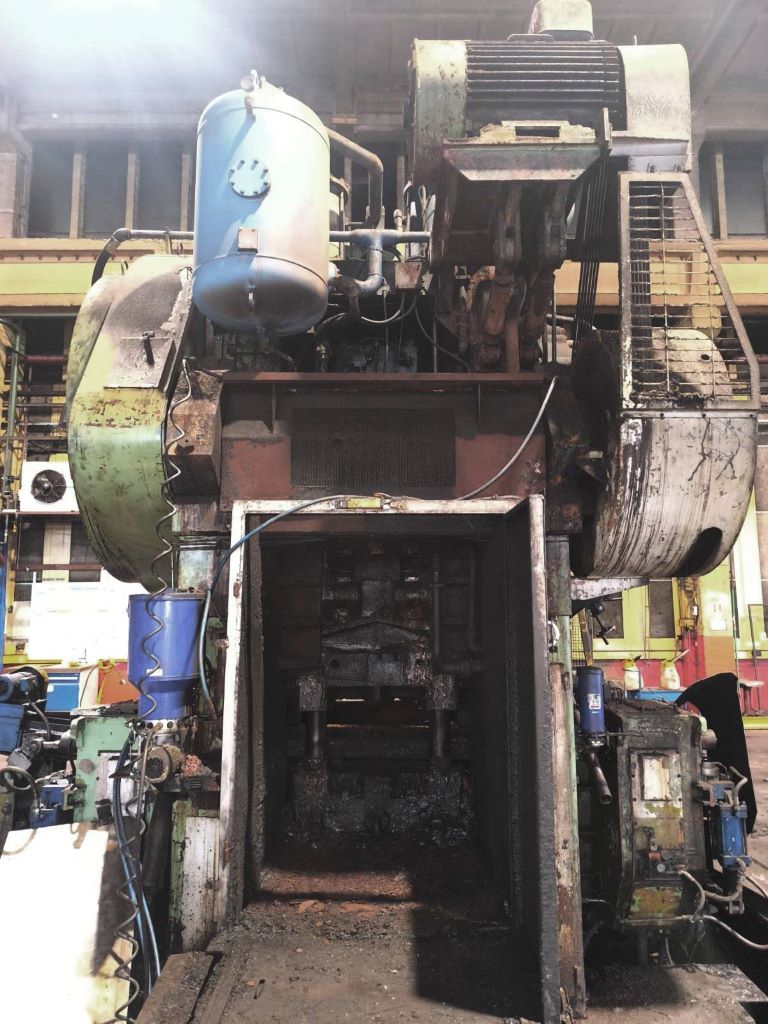

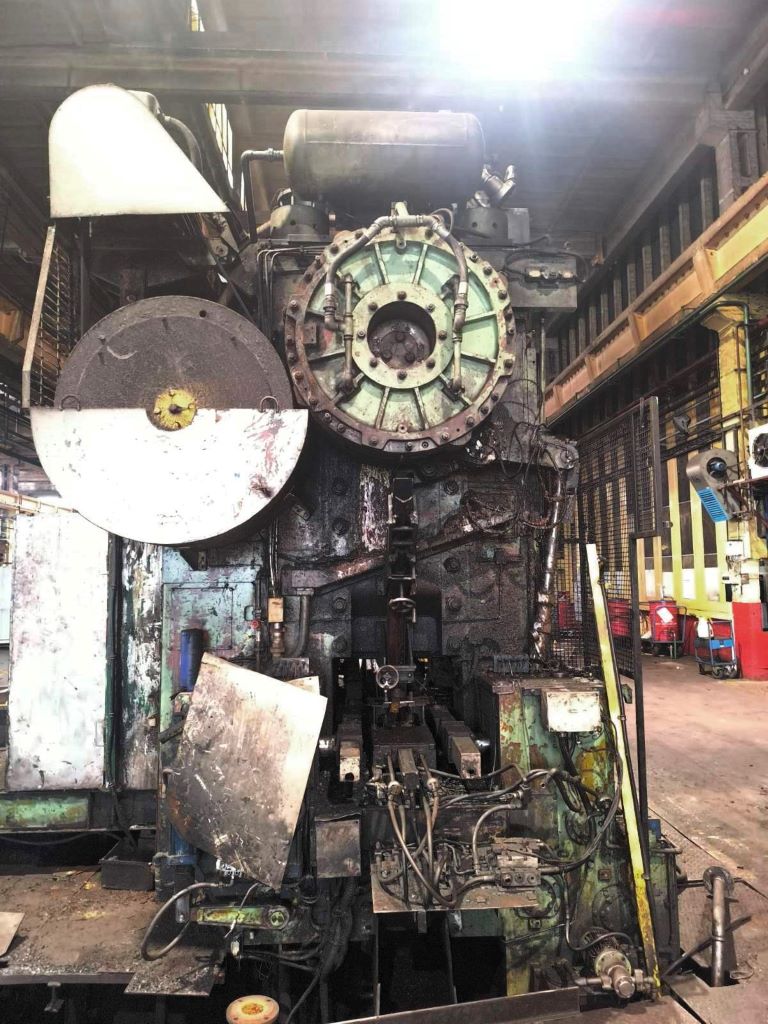

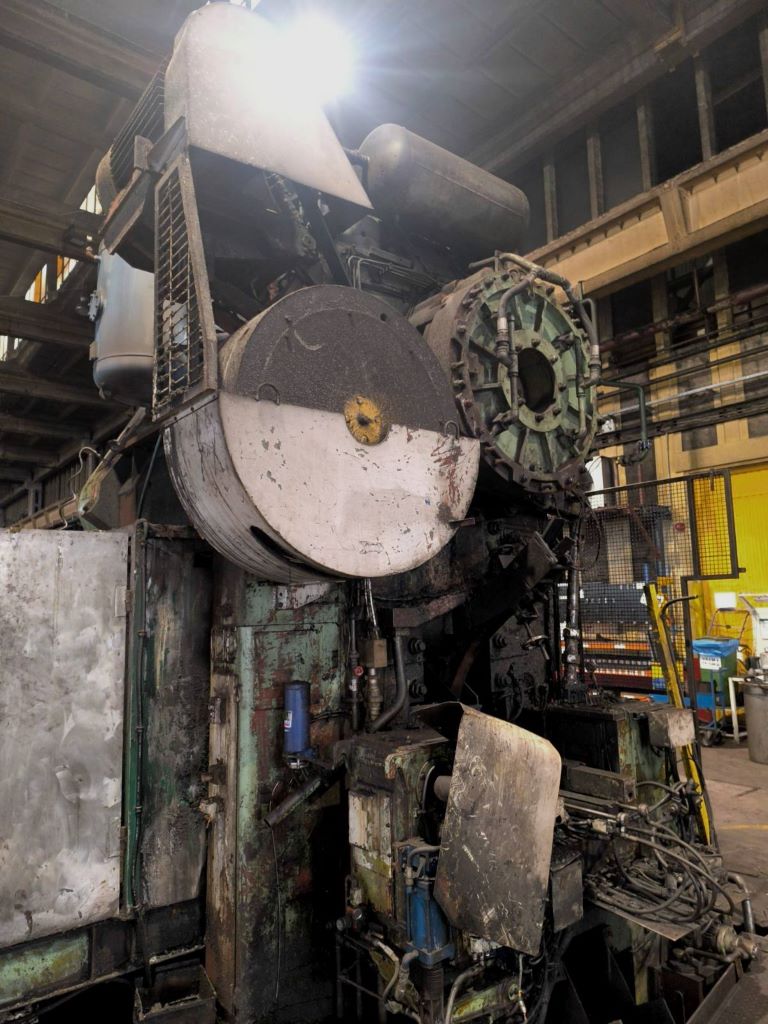

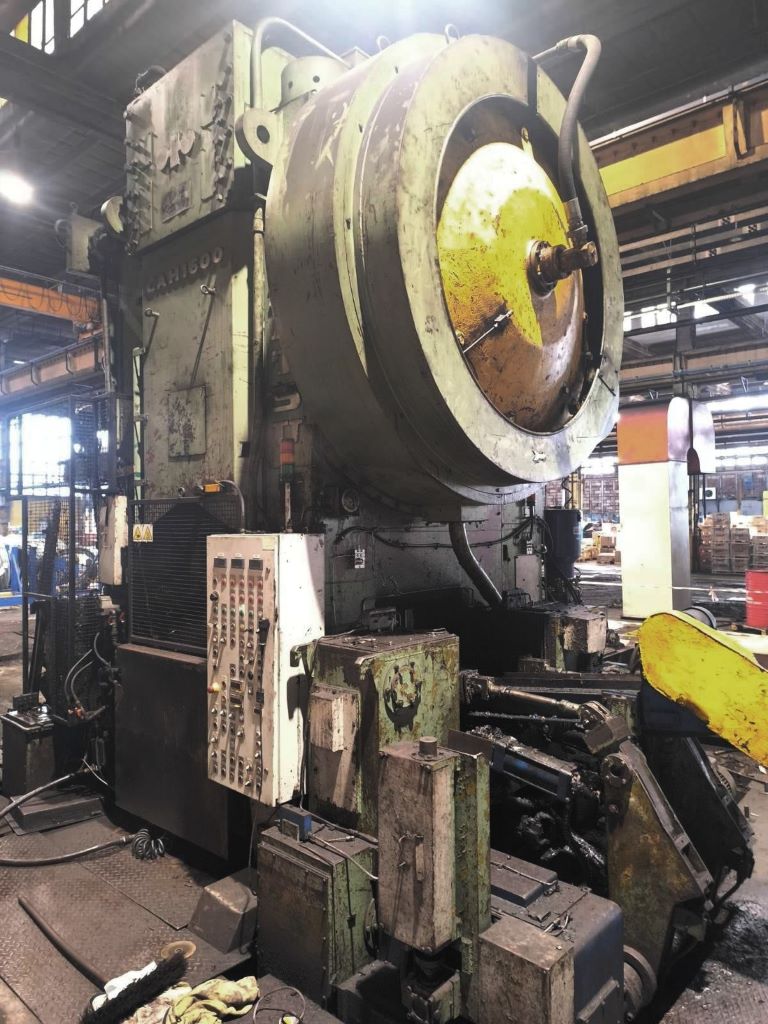

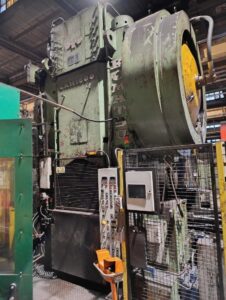

Prensa de estampación en caliente Komatsu CAH1600 - 1600 ton
Especificaciones técnicas (EN) -
Prensa de estampación en caliente Komatsu CAH1600 - 1600 ton (ID: 76396)
| Type | Hot forging press |
| Manufacturer | Komatsu |
| Model | CAH1600 |
| Max. capacity | 1600 ton |
| Slide stroke | 280 mm |
| Shut-height | 760 mm |
| Wedge adjustment | 12 mm |
| Number of slide strokes | 70 rpm |
| Slide bottom face size | 950 x 900 mm |
| Bed top face size | 1050 x 1150 mm |
| Balancer capacity | 2 tons |
| Slide knockout (2 pins) | |
| — Type | mechanical |
| — Capacity | 8 ton |
| — Stroke (manual) | 55 mm |
| — Stroke (auto) | 30 mm |
| — Diameter of knockout pin | 50 mm |
| Bed knockout (3 pins) | |
| — Type | mechanical and pneumatic |
| — Capacity mechanical | 15 ton |
| — Capacity pneumatic | 200 kg |
| — Stroke mechanical | 48 mm |
| — Stroke pneumatic (full stroke, manual) | 70 mm |
| — Stroke pneumatic (full stroke, auto) | 50 mm |
| — Diameter of knockout pin | 70 mm |
| Machine dimensions | |
| — Height to floor | 5530 mm |
| — Length | 3860 mm |
| — Width | 3550 mm |
