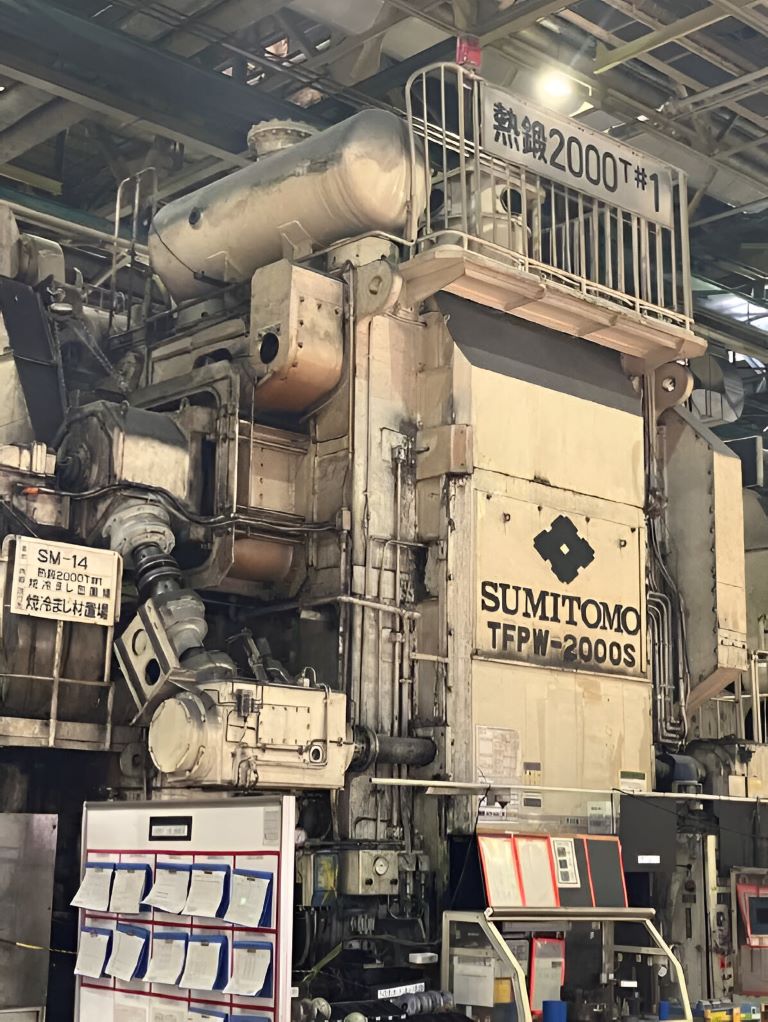

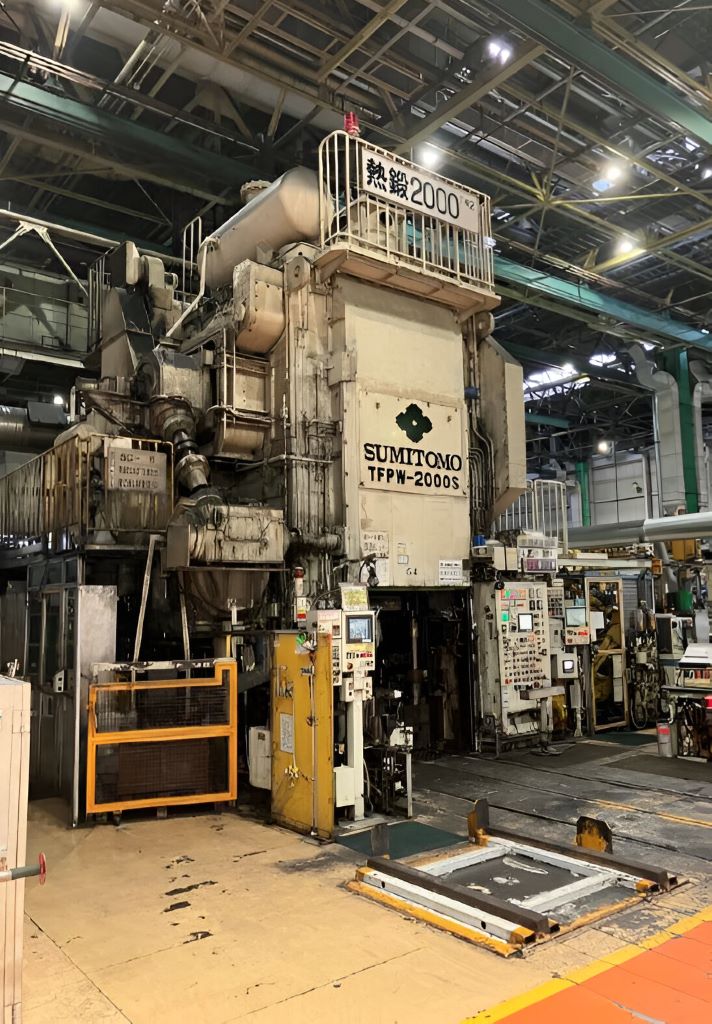

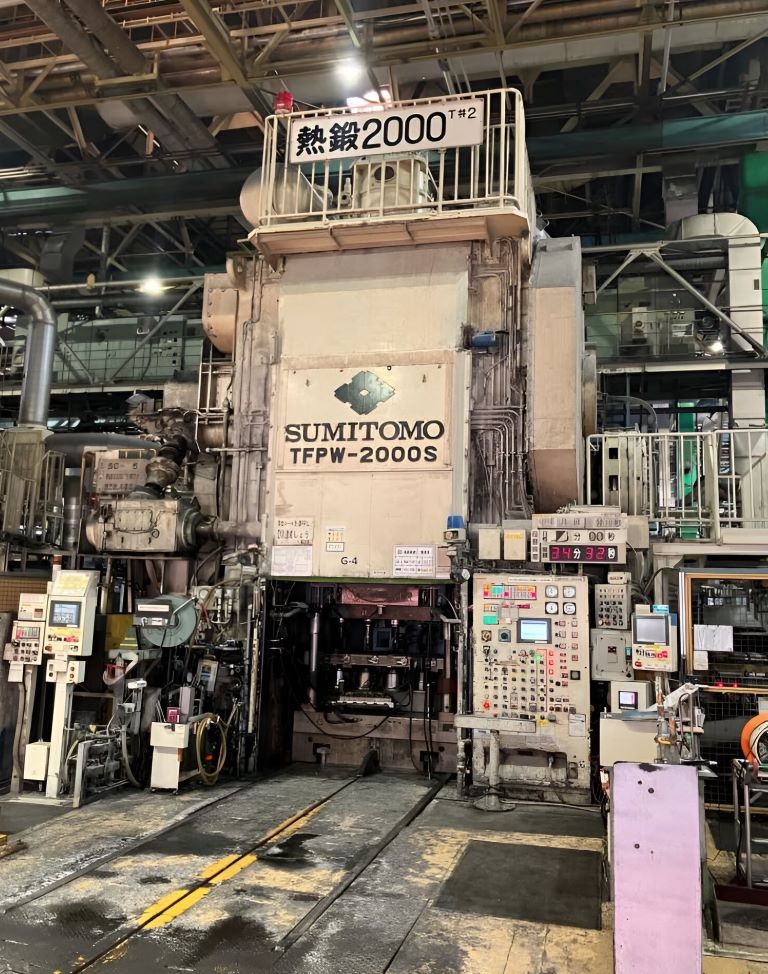

Prensa de estampación en caliente Sumitomo TFPW-2000S - 2000 ton
Especificaciones técnicas (EN) - Prensa de estampación en caliente Sumitomo TFPW-2000S - 2000 ton (ID: 76340)
| Type | Hot forging press |
| Manufacturer | Sumitomo |
| Model | TFPW-2000S |
| Year of manufacture | 1987 |
| Capacity | 2000 ton |
| Stroke | 400 mm |
| SPM | 20 — 40 |
| Shut height | 1500 mm |
| Slide adjustment | 8 mm |
| Effective slide area (L-R x F-B) | 1700 mm x 1500 mm |
| Bed hard plate area (L-R x F-B) | 1800 mm x 1500 mm |
| Main motor | DC 220 KW, 1150 rpm, 440 V |
| Required air pressure | 4.5 kgf/cm2 |
