Especificaciones (EN) - TMP Voronezh KB8544 (ID:S82385)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8544 |
| Rated capacity | 2500 tons |
| Shut height | 890 mm |
| Adjustable distance between table and slide | 10 mm |
| Dimensions of openings in L. H. press side wall | |
| Height | 900 mm |
| Width | 700 mm |
| Table working surface | |
| L-to-R | 1280 mm |
| F-to-B | 1400 mm |
| Slide dimensions | |
| L-to-R | 1090 mm |
| F-to-B | 1150 mm |
| Slide stroke | 350 mm |
| Slide strokes per minute (continuous) | 70 |
| Number of pitmans | 2 |
| Number of drive stages | 2 |
| Top ejector mechanism | |
| Stroke | 50 mm |
| Capacity | 63 kN |
| Bottom ejector mechanism | |
| Stroke | 50 mm |
| Capacity | 100 kN |
| Main drive motor power | 90 kW |
| Overall dimensions | |
| L-to-R | 5940 mm |
| F-to-B | 4330 mm |
| Height above floor level | 7300 mm |
| Mass (approximately) | 183-5 tons |

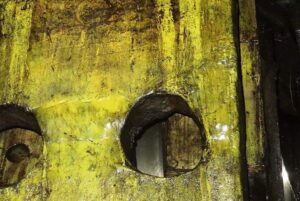

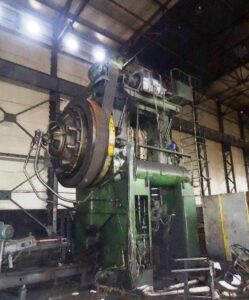

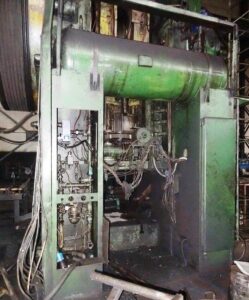

Fotos - TMP Voronezh KB8544 (ID:S82385)
Oferta comercial (en venta) - Prensa de forja TMP Voronezh KB8544 - 2500 ton (ID:S82385). Todos los detalles de esta oferta (costo, condiciones de pago y entrega) se pueden obtener de nuestro gerente haciendo clic en el botón "Enviar solicitud" . También podemos ayudarlo a encontrar otros equipos..Enviar solicitud
